SPD CAD SERVICES

Our comprehensive range of CAD and design services enables us to provide customised solutions for your specific project requirements on time, every time. As the CAD service is entirely electronic we can work remotely nationwide. 'SPD' mainly specialise in the design of Rooftop, Greenfield and Streetwork telecommunication base stations. We offer a full turnkey design service within the telecoms arena and are well respected by our client base for delivering on our promises.

We have the facility to offer either a managed service for high volume instructions or a basic single drawing service at the other end of the spectrum.

One of our aims is to not to compete but to work alongside you and remain almost invisible to your end client. This relationship allows your company to better cater for the peaks and troughs that the telecommunications industry inevitably throws at you. We offer an invaluable solution to the design aspect of the ADC process (Acquisition, Design, Construction) which can cause you endless headaches for very little financial reward.

Mast

It is becoming noticeably difficult to predict the staff capacity required to deliver your projected targets when tendering for new work or to continue with existing contracts. It may even leave you in a position where a contract is simply unattainable. This is where 'SPD' can help and support. We can provide an immediate impact to your company's efficiency & profitability.

During this particularly competitive and uncertain economic period we will guarantee outstanding value without jeopardising quality. We will also ensure we meet your clients SLA's for Planning Drawings, Detailed Designs & As Builts drawings.

Mono Cellular Asset Telent Daly WHP Telecoms Clarke Telecom
GB Communications Harlequin Daly Savills Sitec Waldon

Services

Our engineers, CAD Technicians and Project Coordinators have extensive knowledge of all of the major operators specifications. Our portfolio includes working on projects released by Vodafone, Telefonica UK, T-Mobile, H3G and Orange. We have a team that boasts over 20 years' experience and expertise within this sector. Our most recent success has come through working on the CTIL Cornerstone and EE/MBNL consolidation/network sharing and LTE rollout projects.

CAD Drawings

Site Surveys (MSV's)

Structural Analysis

STAT Management

Engineering Sketches

Electrical design

Converting Drawings

Other Services

Experience

Mission statement from Director: These are extremely exciting times to be involved with the telecommunications industry, SPD remain committed to help provide, create and strengthen the overall mobile infrastructure and technology within the UK for 2G, 3G, 4G, 5G and beyond. Indeed the future does indeed look bright. LTE, 4th and 5th generation intelligent technologies will provide World Wide Wireless Web (WWWW) that will interconnect the entire world without limits, without wires!

5G

5G is short for 'fifth generation mobile networks'. And that's literally what it is - the fifth generation of mobile networks (with a mobile network being what you use to call, text and - when not connected to a Wi-Fi network - get online). But it's set to be far faster than previous generations, and unlike 4G it could open up whole new use cases for mobile data, which we'll get to below.

A little historical background demonstrates the context of 5G. First-generation networks were introduced back in the 1980s - they were analogue and only carried voice. In the '90s, 2G (or second generation) phones launched and they were digital, introducing new features like text messages and picture messages. The early noughties ushered in 3G (third generation) which started to include video calling and mobile data. Ten years later we saw 4G, and these networks and phones were designed to support mobile internet and higher speeds for activities like video streaming and gaming.

Now, networks are changing again and 5G is set to land soon.

What benefits will it bring?

The main benefits of 5G are expected to be that it will be much faster - some are saying as much as 100 times faster.

Top-end 4G networks, known variously as 4G+, LTE-A or 4.5G, can deliver peak download speeds of 300Mbit/s. By comparison, 5G promises to offer speeds in excess of 1Gb/s (1000Mbit/s), with many estimates placing it closer to 10Gb/s (10000Mbit/s).

To place that in context, you will be able to download - not merely stream - a full HD movie in less than 10 seconds on a 5G network. The same task would take closer to 10 minutes on 4G.

A decade of Telecoms excellence for SPD CAD Services

We are celebrating ten years in business and as we reach this milestone it's good to reflect on how far we have come.

Ten years ago, we started up in a small office in south Liverpool. Initially, just a few of us worked around the clock on CAD drawings until eventually we grew to a level whereby we could support large ADC Telecoms company's requirement for turnkey design services and their unquenchable thirst for quality and SLA. We had one goal - to do things our way and provide the best service possible for our clients.

We still remember constantly pressing the 'send and receive' button on Outlook as we awaited a response to our first enquires sent to potential clients across the UK.

How different it is today. With over 20 clients and no sign of slowing down or pressing the send and receive button, we have now established ourselves as one of the county's leading outsource telecommunications design consultancies.

We are still based in Liverpool but in a newly refurbished office in Century Building, Brunswick Business Park. Our long serving staff and CAD support chain have made this success possible and I would like to thank them personally for all their hard work and aptitude over the years.

We don't know what the next ten years will bring, but we can promise the same level of commitment and service that has come to define our business and reputation.

Thank you also to our loyal client base. We truly appreciate your support and we very much look forward to partnering you for another successful ten years.

Kind Regards

Steve
Director

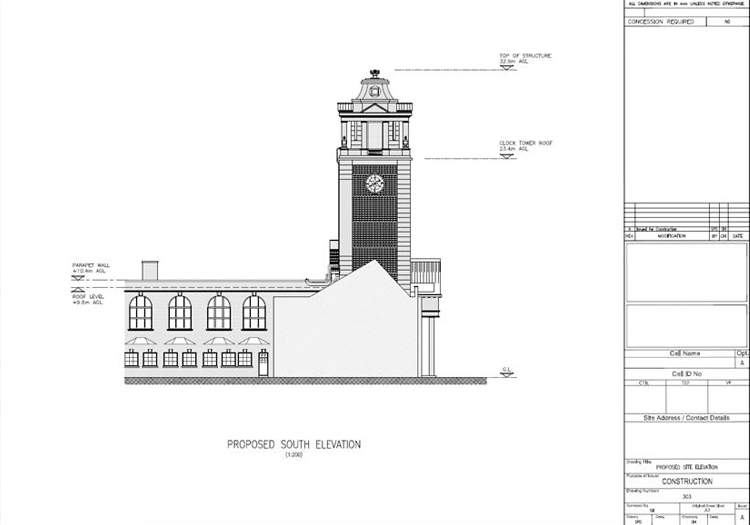

Example Rooftop Design

Example Rooftop Guide

A recent rooftop site demanded a discreet stealth solution, whilst maintaining optimum coverage. The drawings and photographs show how panel antennas are to be fixed behind replacement GRP louvers. Also included are details of how BTS equipment cabinets, power supply, Comms, a new steel floor and maintenance access ladder are to be installed.

Download Drawings
Example Survey Sketch Rooftop Design

Example Survey Sketch Rooftop Design

Download Drawings

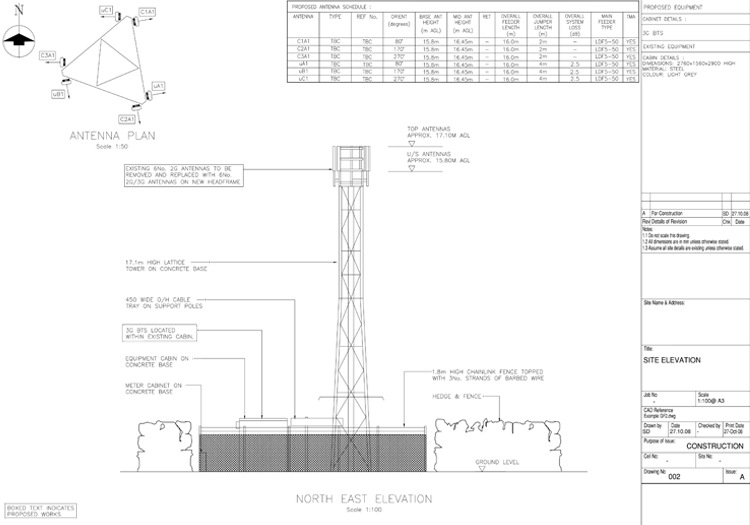

Example Greenfield Design

Example Greenfield Design

A recent greenfield site shows a simple upgrade. There is an existing lattice tower with Delta headframe. The proposal was to add a 3G BTS into existing cabin and replace existing GSM antenna for new GSM & UMTS antennas.

Download Drawings

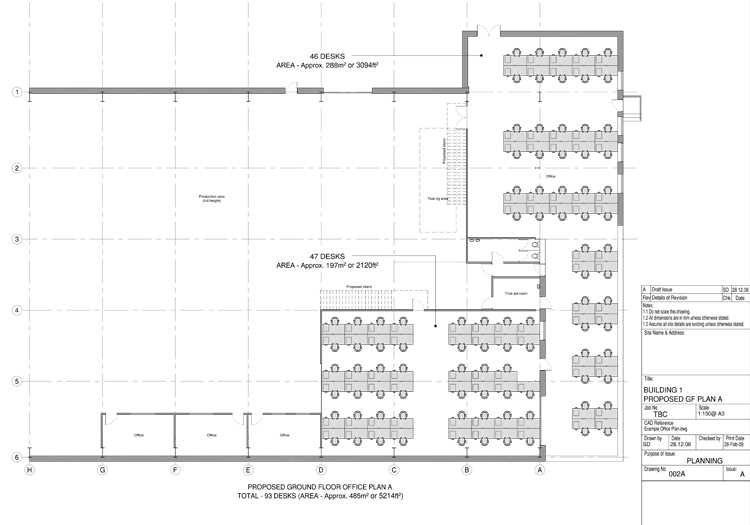

Example Office Space Plan

Example Office Space Plan

Outside of telecommunications SPD CAD Services have completed a number of office & workshop extension plans. These attached plans are used to give a clear indication to the end client of how they can maximise the space they have available for expansion.

Download Drawings

Testimonials

Read what our clients say about us.

Mono

Mono consultants Ltd work as a supplier to the Telecommunications Industry, an industry which instructs large volumes of sites for delivery in very short time scales, and is renowned for its demanding stance. SPD Ltd started working for Mono consultants in february 2010; supporting our design activities for a major Telecommunications Client.

They quickly established themselves as our most pro-active supplier and in an industry such as ours, where time scales are tight and updated information are key, SPD Project Management provides accurate up to date information.

SPD Ltd proven themselves to be able to meet the demanding delivery KPI which drives the current project

SPD Ltd have, despite large changes in Client Specification, maintained high level of quality and it is demonstrable with the low number of attributable errors; making them our most reliable supplier

Awards

Awards Ceremony & Gala Dinner

Celebrating the Success of Outstanding Entrepreneurs

The 2010 Morgan Foundation Entrepreneur Awards Ceremony and Gala Dinner was held on Thursday 11th November at Carden Park Hotel near Chester and hosted by Steve Morgan OBE, Chairman of The Morgan Foundation, Chairman of Redrow plc, The Bridgemere Group of Companies and Wolverhampton Wanderers FC.The winners were announced live on the night in front of an audience of over 270, including all finalists, sponsors and supporters.

Established in 2007, The Morgan Foundation Entrepreneur Awards recognise:

  • Trailblazing businesses
  • Entrepreneurs with vision and drive who are based in North Wales, Merseyside, West Cheshire, Shropshire and the Wolverhampton area
  • Young Entrepreneurs
  • Entrepreneurial individuals working in social enterprises and charities
  • Entrepreneurial social enterprises and charities
  • Businesses and individuals who have achieved 'against all odds'
